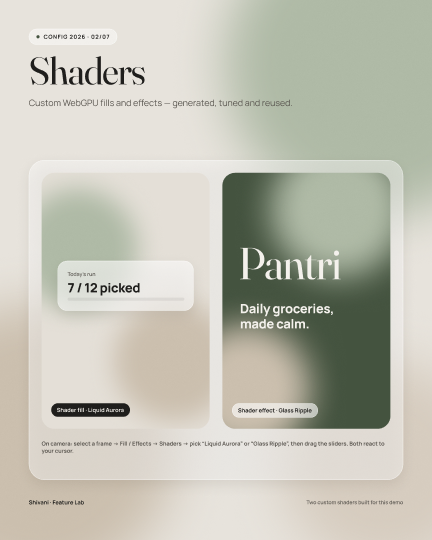

Shaders
A living background for the glass
I wrote two custom WebGPU shaders: an animated "Liquid Aurora" fill and a cursor-following "Glass Ripple". The glass needs something soft behind it; a shader does that without heavy image files.
Pantri: cook from what you already have
A self-initiated grocery and pantry app, born from conversations with home cooks I met at a cooking competition in Dallas. It answers the question they kept coming back to: what can I make for dinner tonight with what's actually in my kitchen? This page shows the research, the scope I chose, why it looks the way it does, and how the Figma file is built.
Get the Figma file on Community ↗
Overview
The problem isn't the shopping list. It's 6 pm.
Most grocery apps help in one moment: the list helps in the store, a pantry tracker asks you to type in everything you own, and a recipe app assumes your kitchen is fully stocked. Real cooking doesn't happen in those moments. It happens at 6 pm, in front of a half-empty cupboard, with kids who want dinner.
The USDA estimates that 30–40% of the US food supply is wasted, and households are the biggest single source. A lot of that waste starts with not knowing what's at home, and with recipes that send you out for ingredients you don't really need.
Problem statement: home cooks need one place that knows what they have, suggests what they can make with it, and offers swaps for what's missing, so they can cook tonight without another store run.
What I delivered
- Research synthesis from conversations with home cooks
- A scoped MVP and the loop it follows: plan, shop, store, cook
- 5 core screens and a substitution concept
- A Figma file with 80 variables in 4 collections, 20+ components with variants and properties, 13 text styles and 5 effect styles
- 3 Smart Animate prototypes and timeline animations in Figma Motion
- A WCAG AA contrast audit of the glass UI, and a test plan
27 → 35primitive colors aliased into semantic tokens
20+components with variants, text, boolean and instance-swap properties
3interaction prototypes, built with Smart Animate
14.6 : 1body-text contrast on glass, measured on the blended color
Research
It started with home cooks, not a feature list
I took part in a cooking competition in Dallas, and the conversations I had with other home cooks there became the starting point. Many of them cook every day for families, often across more than one cuisine. Talk kept coming back to the same frustrations, so I wrote them down and later grouped them into themes.
01Informal conversations with home cooks
02Affinity grouping of what I heard
03Audit of list, pantry and recipe apps
04Assumption mapping
What I heard, and what I designed in response
Heard
The pantry is always messy and incomplete. You only find out what's missing halfway through a recipe.
DesignedA Pantry view grouped by Fridge, Freezer and Cupboard, with quantities and freshness. Receipt scan restocks it, so nobody has to type their whole kitchen in.
Heard
The daily struggle is deciding what to make for dinner, for the kids, and for different cuisines.
DesignedCook from your pantry on Home: dinner ideas built from what you have, filtered by who's eating (kid-friendly) and by cuisine.
Heard
YouTube and cookbooks list specific ingredients. What if you don't have them?
DesignedA recipe match that shows "you have 7 of 9" and suggests a swap for each missing ingredient before it suggests buying anything.
Heard
When something really is missing, it's hard to know where to find it.
DesignedOne tap sends missing items to the shared list, grouped by aisle, with an optional store tag (for example, a specialty grocery for regional spices).
An honest note on the research
These were informal conversations, not structured interviews, so I've paraphrased themes rather than quoting anyone. They gave me a strong direction, not proof. That's why every decision below comes with an assumption to test, and why the next step is a structured round of interviews and a usability test.
| Assumption | Risk if wrong | How I'll test it |
|---|---|---|
| People will trust dinner ideas that start from their own pantry | High: it's the core of the app | Concept test with 5–6 home cooks: would you cook this tonight? |
| A suggested swap is more useful than adding the item to a list | High: drives the recipe match | Show both options on real recipes; record which one people pick |
| Typing in the pantry is why trackers get abandoned | High: receipt scan is the bet | One-week diary: items logged by hand vs. skipped |
| Filtering by "who's eating" (kids, adults) matters more than by diet | Medium: shapes the filters | Card sort of filter options with parents |
Plan & scope
What I built, and what I left out on purpose
A solo concept can grow forever, so I scoped it to one loop: plan, shop, store, cook. Every screen had to move someone to the next step of that loop. Anything that didn't was cut, even if it was trendy.
I also worked within real constraints. On Figma's Starter plan a file gets 3 pages and one mode per variable collection. Instead of fighting that, I structured the file as Cover, Design system and Screens & prototypes, and planned dark mode as a second mode on the same semantic tokens, ready to add on a paid plan.
In scope · MVP

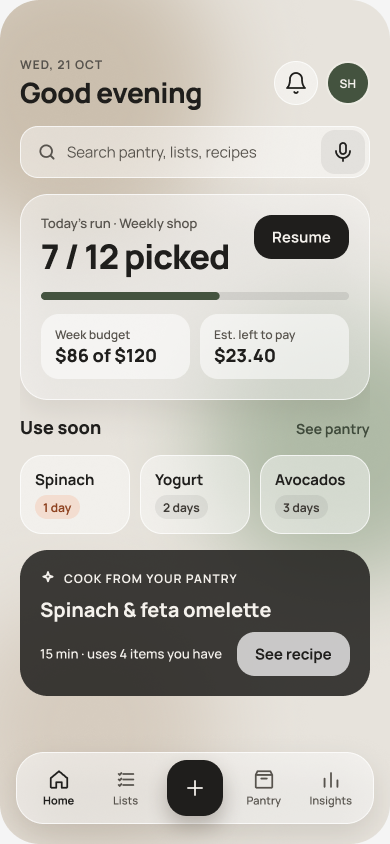

- Home: the unfinished shop, items to use soon, and dinner ideas

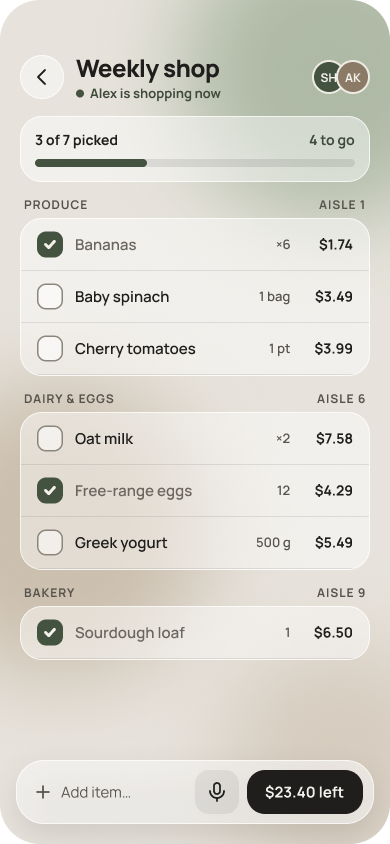

- Shared, live shopping list grouped by aisle

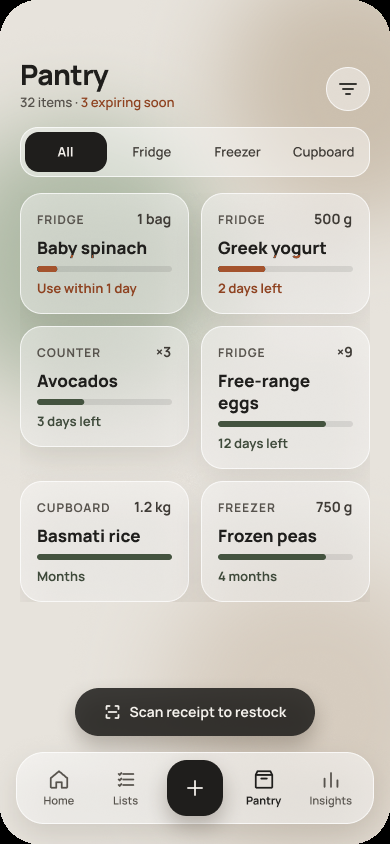

- Pantry with freshness, restocked by receipt or barcode scan
- Cook from your pantry, with swaps for missing ingredients

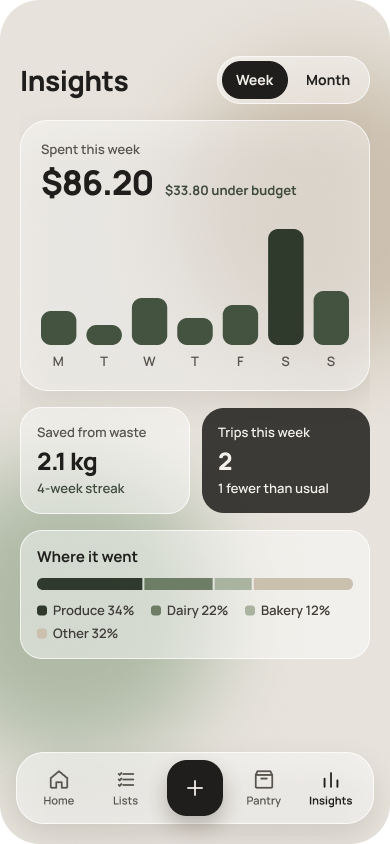

- Insights: spend, trips and food saved from waste
Out of scope, and why
- Grocery delivery and payments: a business partnership problem, not a design one
- Calorie and macro tracking: a different product with different users
- Social feed and recipe sharing: adds noise to a daily utility
- Video recipes: I link out to them; the app's job is matching ingredients
Process
From kitchen conversations to a test-ready file
Listen
Conversations with home cooks; grouped what I heard into four themes.
Frame
Journey map of the grocery loop, problem statement, assumptions and the MVP scope.
Structure
Four tabs that follow the loop, plus one Add button in the middle for the most frequent task.
System first
Variables, styles and components before any screen, so every screen is built from instances.
Prototype
Smart Animate flows, Figma Motion timelines, a contrast audit and a test plan.
| Stage | Plan | Shop | Store | Cook |
|---|---|---|---|---|
| Doing | Writes a list from memory | Walks the aisles, guesses quantities | Pushes new food in front of old | Decides dinner at 6 pm from what's visible |
| Feeling | Rushed | Unsure | Neutral | Stuck |
| Pain | "Do we still have rice?" | Two people, two lists, duplicates | Nothing records what was bought | The recipe needs things you don't have |
| Opportunity | A pantry-aware list | One live list, grouped by aisle | Receipt scan restocks the pantry | Cook from your pantry, with swaps |
Key decisions
Six decisions, what I rejected, and the trade-offs
| Decision | What I considered | Why this one | Trade-off |
|---|---|---|---|
| Swaps before shopping Research theme 3 | Add every missing ingredient straight to the list | The cooks wanted to cook tonight, not go out again. A swap ("use yogurt instead of sour cream") keeps dinner possible. | Swaps need good data and can change the dish, so each one says what changes. |
| One Add button, three ways in Hick's · Fitts's law | An add field on every screen; separate scan and voice buttons | One 56 pt target in thumb reach, and three options is a choice you make at a glance. | Adding from the List costs a tap, so the List keeps its own inline add bar. |
| Group the list by aisle Chunking · Jakob's law | A flat list in the order items were added | Matches how people walk a store; small groups are easy to scan with one hand. | Aisles differ by store, so aisle numbers are optional data. |
| Home opens on the unfinished task Zeigarnik · goal-gradient | A dashboard of equal tiles; a recipe feed | "7 of 12 picked" with a Resume button is what people come back for. | With nothing in progress, the slot becomes "Plan dinner". |
| Color only for urgent items Von Restorff · WCAG 1.4.1 | A traffic-light color on every item | On a calm screen, the few clay items stand out. Every tag also says "1 day". | Fresh and "a week left" look alike; the freshness bar carries that detail. |
| The scan sorts storage Tesler's law | Asking people to file every scanned item | The system holds the complexity, so restocking is one tap. | Wrong guesses happen, so Review stays one tap away. |
Next iteration
Recipe match with swaps
This screen came straight from the third research theme. Pick a recipe from YouTube or a cookbook, and Pantri checks it against your pantry. Instead of a shopping list, it leads with what you can do right now.
It reuses the existing system: glass panels, the Chip component for "who's eating" and cuisine filters, and the clay token for what's missing, with the label "missing" in text so color never carries the meaning alone.
Concept built in HTML for this page. Ingredients and swaps are illustrative.
Recipe match
Paneer butter masala
From a saved video · serves 4 · 40 min
Kid-friendlyIndianMexicanItalian
You have 7 of 9
Paneer✓ Fridge
Tomatoes✓ Counter
Heavy creammissing
↺ Swap: cashew paste or yogurt · slightly lighter
Kasuri methimissing
↺ Optional: skip it · less aroma
Cook with swapsAdd 2 to list
Final design
Five screens that follow the loop
Why this color and design
A kitchen is already loud. The app should be quiet.
Kitchens are full of color: packaging, produce, food photos and recipe thumbnails. A bright, saturated app would compete with all of it. So the palette is warm neutrals, like stone, sand and linen, and the app steps back so the food and the few urgent items stand out.
Only two colors carry meaning. Sage means "go": primary buttons, checked items, progress. Clay means "use soon". I picked clay over red on purpose. Red reads as an error or danger, and an avocado that needs eating tomorrow isn't an emergency. It's a nudge.
Text is a warm near-black (#1F1E1C), not pure black, which is softer on a warm background and still gives 14.6 : 1 contrast.
Why glass? Glassmorphism is a trend, but here it does a job: it shows layers. The tab bar, sheets and cards float over a soft, blurred background, so you can tell what sits on top without heavy borders or shadows. That keeps the UI calm.
The trend version usually fails accessibility: transparent panels on bright gradients. I set rules instead. Glass is only for grouping surfaces, never behind text without a solid floor. Panels stay 45–60% white over a low-contrast neutral background, and I measured contrast on the blended color, which is what people actually see.
Type pairs Fraunces, a soft serif for headings that feels like a cookbook, with Manrope, a clear sans for everything you read quickly.
bg/canvasWarm stone base
text/primaryWarm near-black
bg/accent · sageGo: actions, progress
text/warn · clayUse soon, never alarm
text/secondaryQuantities, meta
blob/sandBlurred background
blob/sageBlurred background
bg/glassWhite 45–60%, blur 24
Figma craft
The design system, and what made it easy
I built the system before any screen. Every screen is assembled from component instances, and every component binds its fills, strokes, gaps and corner radius to variables. That's what made the rest of the project fast: one change to a token updates every component and every screen.
| Collection | Count | What it holds | Set-up detail |
|---|---|---|---|
| Primitives | 27 | The raw palette: ink, stone, sand, sage, clay, alpha whites | Hidden from pickers (no scopes), so nobody can apply a raw hex by mistake |
| Color | 35 | Semantic roles: bg/glass, text/secondary, border/glass, icon/inverse… | Every value aliases a primitive; scoped to fills, text or strokes only |
| Spacing | 11 | A 4 pt scale, space/4 to space/32 | Scoped to Gap; bound to padding and item spacing in auto layout |
| Radius | 7 | radius/sm 9 to radius/full 999 | Scoped to Corner radius; bound per corner |
How one token travels from palette to code
ink/600Primitive · hidden→
text/secondarySemantic · Text fill scope→
var(--color-text-secondary)Web code syntax→
ListRow · QtyBound in the component
Each semantic variable carries web code syntax, so a developer inspecting a layer in Dev Mode sees the CSS variable name, not a hex value.
| Component | Variants | Properties | UX rule in its description |
|---|---|---|---|
| ListRow | Checked = True / False | Name, Qty, Price (text); nested Checkbox instance | Law of similarity: every row reads the same way |
| PantryCard | Status = Urgent / Fresh | Name, Location, Qty, Days; nested ProgressBar and Expiry Badge | Von Restorff: only urgent cards use clay |
| TabBar | Active = Home / Lists / Pantry / Insights | Built from TabItem instances plus the FAB | Jakob's law: a familiar bottom bar |
| IconButton | Glass / Tonal / FAB | Icon: instance swap from a 15-icon set | Fitts's law: 44 pt minimum, FAB 56 pt |
| SectionHeader | — | Title (text); Show link (boolean) | Proximity: label sits with its group |
| ProgressBar | 15 / 35 / 60 / 80 / 100% | Fill uses a Scale constraint, so it resizes with the bar | Goal-gradient: visible progress |
| Button · Chip · Badge | 3 · 2 · 2 styles | Label (text) | One primary action per screen |
What made it easy · 1
Aliasing
Semantic tokens point at primitives. To warm the whole palette, I only edit the 27 primitives; all 35 semantic colors follow, across every screen.
What made it easy · 2
Scopes
Text colors only show up in the text picker, gaps only in gap fields. Fewer wrong choices meant fewer fixes, and it would help anyone else using the file.
What made it easy · 3
Properties over variants
Text, boolean and instance-swap properties keep the variant count small. TabItem has 2 variants, not 2 × 4 icons × 4 labels.
What made it easy · 4
Nested instances
PantryCard nests ProgressBar and Badge. Fixing the bar once fixed every card in the pantry.
What made it easy · 5
Styles for recipes
The glass look is one effect style (background blur 24 + soft shadow). Applying it is one click, and tuning it updates every panel.
What made it easy · 6
The why travels
Each component description states the UX rule it follows, so the reasoning shows up in Dev Mode and in reviews, not in a separate deck.
How I used AI

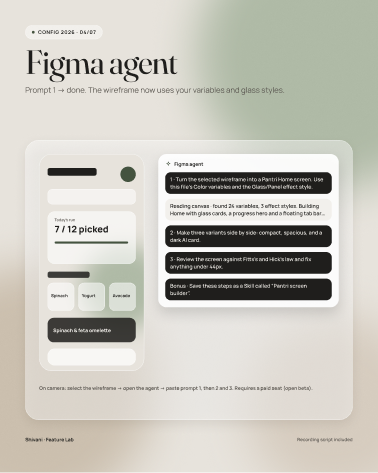

I worked with Claude, connected to Figma, to script the repetitive set-up: creating the variable collections, generating component variants and placing keyframes. The research, scope, palette, rules, layouts and every design decision are mine, and I reviewed and adjusted everything it built. It saved hours of clicking, not thinking.
Inspect the file
Click around a slice of the Figma file
A small, interactive copy of the components page. Select a layer or click anything on the canvas to see its variables, auto layout and properties, the way they're set up in the real file. Purple fields are bound to variables.
# Color tokens
text/secondary
bg/accent
text/warn
bg/glass
❖ Components
✓Spinach1 bag$3.49
Greek yogurtFridge · 1 tub
1 dayAdd all to pantryReview
HomeLists+PantryInsights
Interactive fileClick a layer or anything on the canvas to inspect it
Frame
WHug
HHug
Local variables4 collections
Primitives27 · hidden
Color35 · aliases
Spacing11 · Gap
Radius7 · Corner
Primitives have no scopes, so they never appear in pickers. Designers can only reach the semantic layer.
VariableColor
◈text/secondary
Value→ ink/600 (alias)
ScopeText fill
Webvar(--color-text-secondary)
Used for quantities and meta text. 6.7 : 1 on glass, so it passes AA for body text.
VariableColor
◈bg/accent
Value→ sage/700 (alias)
ScopeFrame fill, Shape fill
Webvar(--color-bg-accent)
Sage means "go": primary buttons, checked boxes, progress. Light text on it is 7.3 : 1.
VariableColor
◈text/warn
Value→ clay/700 (alias)
ScopeText fill
Webvar(--color-text-warn)
Clay, not red: "use soon" is a nudge, not an error. Always paired with text such as "1 day".
VariableColor
◈bg/glass
Value→ white/55 (alias)
EffectGlass/Panel · blur 24
The glass recipe is split in two: the fill is a variable, the blur and shadow are an effect style. Either can change without touching the other.
Frame
W420
HHug
Auto layout⋮⋮
↓→⤶
⇹space/24
▢space/24
20+ components live here. Screens on the next page are built only from their instances.
❖ ListRowComponent
CheckedTrue ▾
T NameSpinach
T Qty1 bag
T Price$3.49
Auto layout⋮⋮
↓→⤶
⇹space/12
▢space/12
WFill
HHug
Fill & radius
◈bg/glass
◈radius/lg
Checked = True strikes through the name and dims it. In the prototype, tapping the box Smart Animates between the two variants.
◇ CheckboxInstance
CheckedTrue
W22
H22
◈bg/accent
The visible box is 22 pt, but the row is the tap target, so it clears 44 pt. Its border on glass is 3.2 : 1, just above the 3 : 1 rule for UI parts.
❖ PantryCardComponent
StatusUrgent ▾
T NameGreek yogurt
T LocationFridge
T Days1 day
Auto layout⋮⋮
↓→⤶
⇹space/10
▢space/14
Two nested instances: Expiry Badge and ProgressBar. Status = Urgent switches both to clay in one change.
◇ Expiry BadgeInstance
StatusUrgent
T Label1 day
◈text/warn
5.4 : 1 contrast. The label always says how many days, so meaning never depends on color (WCAG 1.4.1).
◇ ProgressBarInstance
Value15 ▾
Fill constraintScale
◈radius/full
The fill uses a Scale constraint, so the card can be any width and 15% stays 15%.
❖ ButtonComponent
StylePrimary ▾
T LabelAdd all to pantry
◈bg/accent
◈radius/md
Three styles: Primary, Secondary, Tonal. One primary per screen, so the next step is always obvious.
❖ TabBarComponent
ActivePantry ▾
Built from4 × TabItem + FAB
◈bg/glass
Effect
✦Glass/Bar
Four variants, one per tab. Each TabItem uses instance swap for its icon, so variants stay few.
◇ IconButtonInstance
StyleFAB
⇄ IconPlus (instance swap)
W56
H56
Prototype
On tapSmart Animate → Quick add
The most frequent task gets the biggest, closest target (Fitts's law). It morphs into the Quick add sheet.
Prototyping & motion
Motion that confirms, never decorates
I prototyped the three moments where feedback matters most: first as Smart Animate flows for testing, then as timeline animations in Figma Motion for handoff. Each one confirms an action within the 400 ms the Doherty threshold suggests.
| Moment | What moves | How it's built | Why |
|---|---|---|---|
| Check off an item | Checkbox springs 1 → 1.18 → 1, the line strikes through, the counter and bar update | Smart Animate between ListRow variants; spring easing | Instant confirmation; progress pulls toward finishing |

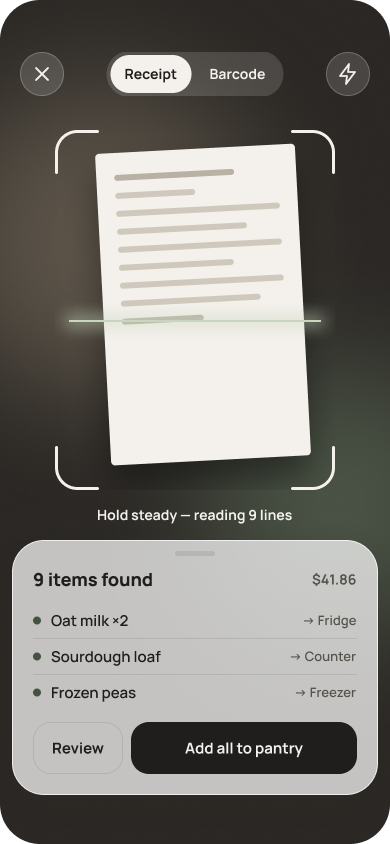

| Scan to pantry | Scan line sweeps, items pop in a 120 ms stagger, the sheet rises | After-delay trigger (1.6 s), then Smart Animate | Shows the system is working, then hands back control |
| Quick add | The + button grows into the sheet: width, height, radius and position together | Matching layer names so Smart Animate morphs one into the other | The sheet visibly comes from what you tapped |
- Spring easing only for confirmations; standard ease-out for layout changes.
- Every duration is between 180 and 600 ms.
- With Reduce Motion on, every animation falls back to a simple fade.
Trends, explained differently
I didn't follow trends. I gave each one a job.
Every trend is a tool with a cost. For each one I asked: what problem does it solve for these cooks, what does it usually break, and when would I drop it?
| Trend | The job it does in Pantri | What it usually breaks | My guardrail |
|---|---|---|---|
| Glassmorphism | Shows what sits on top: bars, sheets, cards | Text contrast | Solid floor behind text, contrast measured on the blend, Reduce Transparency fallback |
| Quiet, warm neutrals | Lets food and urgent items stand out in a busy kitchen | Hierarchy can go flat | Only two meaning colors; size and weight carry the rest |
| AI suggestions | Turns "what's in my pantry" into "what's for dinner" | Trust: suggestions that ignore real life | Shows why ("uses spinach before it expires"), always offers a swap or a no |
| Micro-interactions | Confirms a tap when hands are busy | Slowness and distraction | Under 600 ms, only on actions, off with Reduce Motion |
| Bento cards and widgets | Home shows three answers at once: the run, use soon, dinner | Everything gets equal weight | One card leads; the rest support it |
| Token-driven theming | Dark mode or a new brand without redrawing | Token sprawl | Two layers only (primitive → semantic), with scopes |
New in Figma · Config 2026
The newest Figma features, each tied to a Pantri problem
Instead of demoing features for their own sake, I used Pantri as a test bed and asked what each new tool could do for this product. Some became part of the work, others are experiments I'd keep exploring.

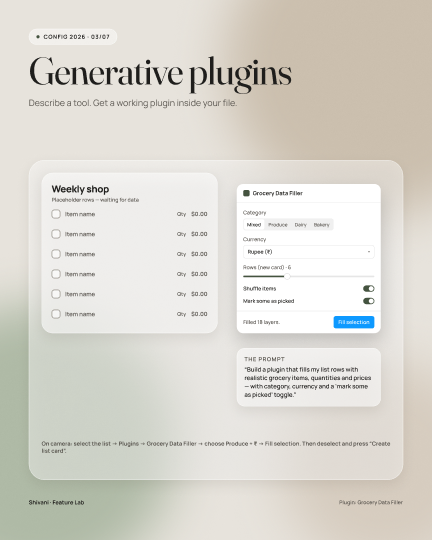

Generative plugins
Real-looking data, instantly
A working plugin that fills list rows with realistic grocery items, quantities and prices. Testing a list full of "Item 1" hides real problems like long names.
Figma agent
Busywork, not decisions
An experiment handing the agent repetitive tasks like making variants and renaming layers, while layout and judgment stay with me.

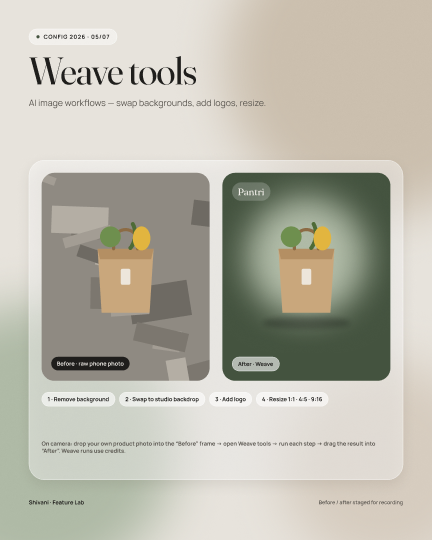

Weave
Imagery for dinner ideas
Exploring generated food images for recipe cards, so concepts don't depend on stock photos that never match the dish.

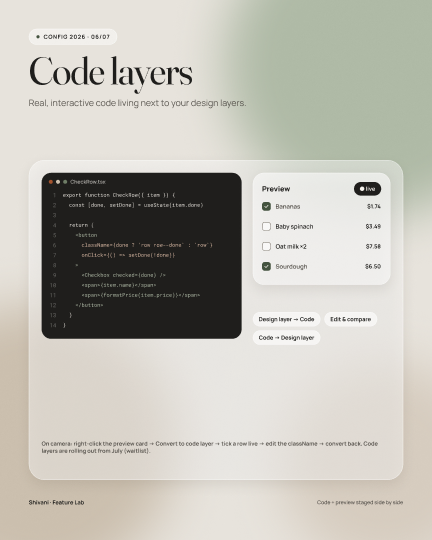

Code layers
Closer to what ships
A live code layer on the canvas, to check how a component behaves with real interaction before handoff.

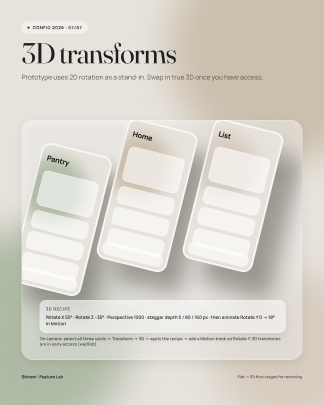

3D transforms
Presentation without leaving Figma
Tilted device layouts for the cover and Behance shots, built natively instead of in a separate 3D tool.
Accessibility
Glass that still passes WCAG AA
Glassmorphism is known for failing contrast. I measured every text pairing against the blended glass color, not the raw token, because that is what people actually see.
| Pairing | Ratio | Needs | Result |
|---|---|---|---|
| Primary text on glass | 14.6 : 1 | 4.5 : 1 | AA pass |
| Secondary text on glass | 6.7 : 1 | 4.5 : 1 | AA pass |
| Clay "1 day" tag | 5.4 : 1 | 4.5 : 1 | AA pass |
| Light text on sage button | 7.3 : 1 | 4.5 : 1 | AA pass |
| Checkbox border on glass | 3.2 : 1 | 3 : 1 (non-text) | Pass, narrow margin |
- Every touch target is at least 44 × 44 pt; the Add button is 56 pt.
- Status is never color alone: urgency tags always say how many days are left.
- Icon-only buttons have labels such as "Add by voice" for screen readers.
- Planned: Reduce Transparency swaps glass for solid surfaces, and text styles map to Dynamic Type sizes.
Validation plan
How I'd prove it works
The prototype is ready for a moderated test with 5–6 home cooks, ideally including the people whose stories started this. I set the targets before testing, so the results can prove the design wrong.
| Task | Metric | Target | Tests which decision |
|---|---|---|---|
| "Find something for dinner tonight the kids will eat" | Time and success | Under 60 s, 5 of 6 | Cook from your pantry, filters |
| "This recipe needs heavy cream. What can you do?" | Picks swap vs. buy | Swap found unaided | Swaps before shopping |
| Add "2 lemons" to the list | Time on task | Under 5 s | One Add button |
| Restock the pantry after a shop | Task success | 5 of 6 unaided | Receipt scan sorting |
| Overall | SUS score | 80 or more | The whole experience |
After launch I'd track meals cooked from pantry suggestions, swaps accepted, and items marked "used" before expiry. The north star is food saved from waste per household.
Reflection
What I learned, and what's next
Learned
Listen in the real setting
Talking to cooks at a competition, not in a meeting room, showed me the real question is "what's for dinner?", not "how do I organize my list?". That shifted the whole product toward cooking.
Learned
Write the rule into the component
Putting the UX reasoning in each component's description made reviews faster. The why travelled with every instance.
Next
Test, then cut
Run structured interviews and the test above. Validate the swap and scan bets first, since everything downstream depends on them. Then add dark mode as a second token mode.
Open the Figma files
Duplicate on Figma Community ↗
Pantri app ↗Screens, variables, components, prototypes
Config 2026 feature lab ↗Shaders, plugin, agent, Weave, code layers, 3D
Feature reels ↗Seven Figma Motion animations
Pantri is a self-initiated concept by Shivani Harode, 2026. Research came from informal conversations and is treated as direction to validate. The food-waste figure is the USDA's estimate.
